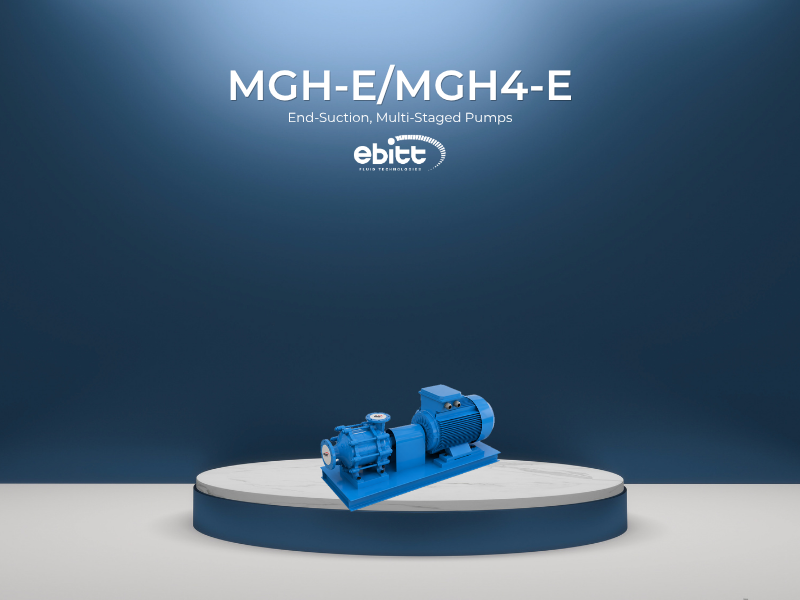

Horizontal End Suction Multi-Staged Pumps

Technical Data

Q max: 400 m³/h

H max: 450 mWC

From 11 kW to 250 kW

Voltage: Three Phase, 3*400V

IP54, 50/60 Hz, Heavy Duty,

Design Pressure: 30 bar (63bar)

Connections: DN40 – DN150

Fluid Temperature: up to 140 °C

Materials

Cast iron, Ductile Iron, SS, Duplex

Soft Gland, or Mechanical Seals,

IE3 / IE4 TEFC Motors

Long Coupled, Heavy Duty

Applications

Cooling, Irrigation, Transfer, Fire Fighting, Boostering, Mining
