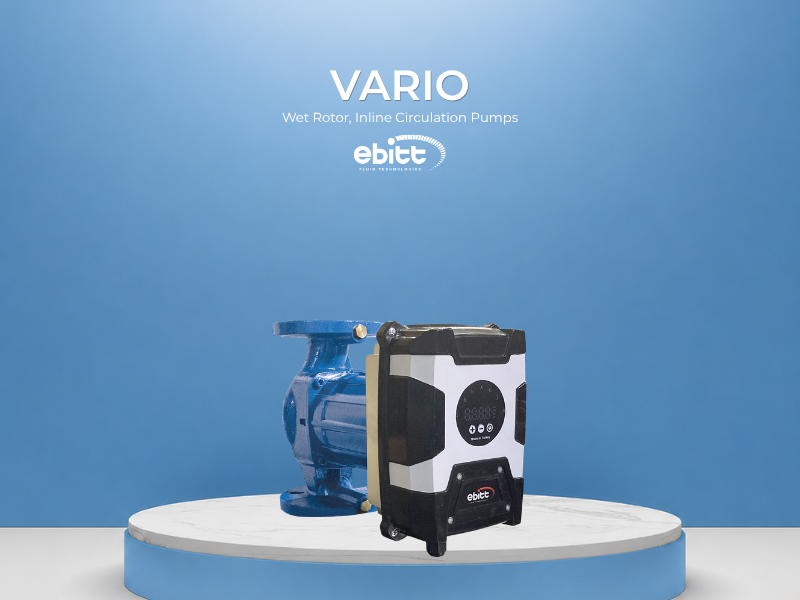

Frequency Converted Circulation Pumps

Technical Data

Q max: 48 m³/h

H max: 15 mWC

From 0,50 kW to 0,92 kW

Voltage: Single Phase, 230V

IP42, 50/60 Hz, EEI <=0,23

Operating Pressure: 10 bar

Connections: DN40 – DN65

Fluid Temperature: -10 / +110 °C

Materials

Cast iron casing, PPO Impeller,

Sealless type, Sensorless,

Synchoronous Motor, VFD

Permanent Magnet Motor

Applications

HVAC, Heating, Cooling, DHW Re-circulation
