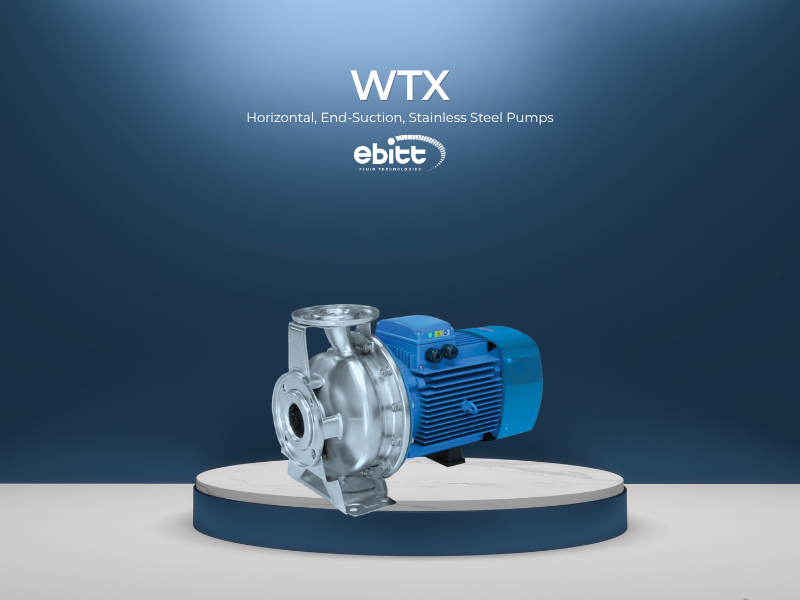

Monoblock Horizontal Type Single Stage Centrifugal Pumps

Technical Data

Q max: 200 m³/h

H max: 75 mWC

From 1,1 kW to 37 kW

Voltage: Three Phase, 3*400V

IP54, 50 Hz, EU 547/2012

Operating Pressure: 10 bar

Connections: DN32 – DN80

Fluid Temperature: up to 110 °C

Materials

Full Stainless Steel; 316SS Mechanical Sealed, Single Stage

IE2 / IE3 TEFC Motors

Close Coupled, Monoblock Type

Applications

Cooling, Irrigation, Transfer, Fire Fighting, Boostering, Process
